###: The motherboard will be shipped with a processor base protective cover. Please feel free to buy.
Motherboard+CPU+RAM options include:
Motherboard: MACHINIST X99 PR9-H white motherboard *1pcs.
Processor: Intel Xeon E5 2650 V4 *1pcs.
RAM: DDR4 8GB desktop memory *2pcs.
Free accessories: I/O shield *1, SATA cable *1.
(>>Everything is manually tested and packaged before sending. Please understand if there are any gifts missing!)
Processor information:
Model: E5 2650 V4,
CPU frequency: 2.2GHz,
Number of cores: 12,
Number of threads: 24,
Turbo frequency: 2.5GHz,
Manufacturing process: 14nm,
TDP: 105W,
The processor supports memory specifications: DDR4-1600/1866/2133/2400.
Motherboard information:
>>Brand:MACHINIST.
>>Motherboard model: X99 PR9-H white.
>>Processor: Support LGA 2011-3 series,
>> Chipset: HM55/H55 Chipset.
>>Memory
Technology: Dual Channel DDR4. Support 2133/2400/2666/3000/3200 MHZ.
Maximum capacity 128GB (32Gx4).
Memory slot: 4*288 PIN DDR4.
(Note: Please use international brands such as Samsung, Kingston, SanDisk, and Micron. Other brands may be incompatible.)
>> Post I/O
PS/2: 1 KB interface + 1 MS interface.
USB interface: 6 USB2.0.
Ethernet: 1 Gigabit network card.
Audio: 1 (Mic-in, Line-out, Line-in).
SATA interface: 3 (SATA2.0).
M.2:1 (nvme/sata).
PCIe: 1 PCIe 16x, 1 PCIe 1x.
>>Outline dimensions: 215mm * 185mm.

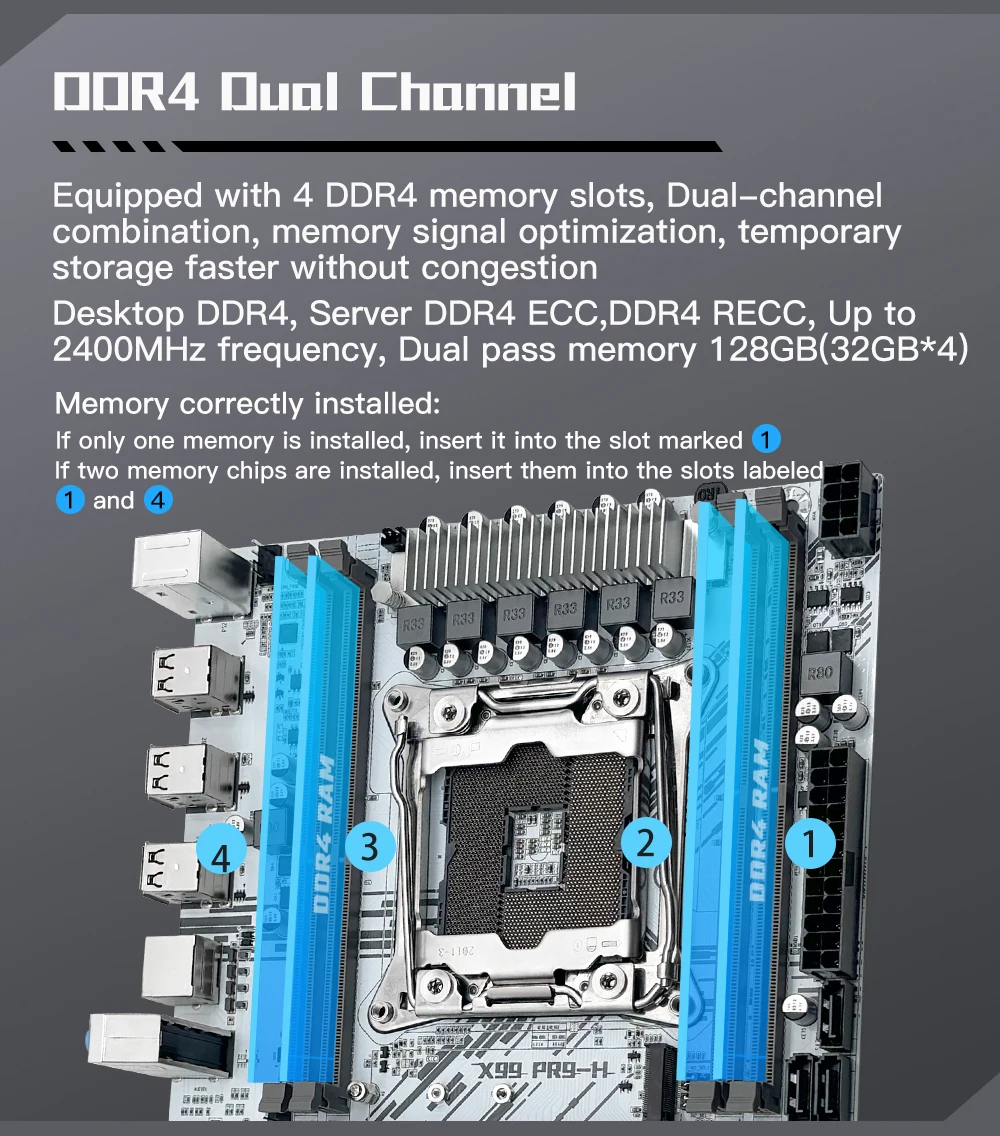

>>For installing memory. All RAM needs to be installed first in slot #1 and slot #4 (the outermost slot). The middle memory slots (#2/#3) of the motherboard cannot work alone.
>>Please note: Some processors only support memory up to DDR4 1866Mhz or 2133MHz. This means that when 3200Mhz or 2666Mhz is installed, it will only show 1866Mhz and 2133MHz. On CPU-Z it can read 3200MHz and 2133MHz. If you mind, please do not place an order.
>> Regarding customs issues, please ensure that you can solve the customs clearance problem by yourself. If you cannot solve it, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. thank you for understanding.
Notice:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.
(4) The platform requires a powerful power supply. Please make sure your power supply is sufficient for this platform. (At least 500w brand power supply)
(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
| Weight | 23 kg |
|---|---|
| Dimensions | 6 cm |
| Brand Name | MACHINIST |
| Chipset | Intel H55 |
| Onboard LAN | 1x RJ45 |
| Maximum Ram Capacity | 128 GB |
| Processor compatibility | Intel Core |
| With CPU | Yes |
| Support Memory Type | DDR4 |
| Number of PCI | 1 |
| Storage Interface Type | M.2 (NVMe) |
| Package | Yes |
| RAID Supported | no |
| Application | Desktop |
| Chipset Manufacturer | Intel |
| Back I/O Ports | 1x RJ45 |
| PCI - E standards | PCI – E 3.0 |
| Socket Type | LGA 2011-3 |
| Hign-concerned Chemical | None |
| Special Function | none |
| Usage Scenario | others |
| Origin | Mainland China |
| Number of PCIe x 8 | 0 |
| Number Of Memory Slots | 4 |
| Ports | PCI-Express X1 |
| Support USB Type | USB 2.0 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 16 | 1 |
| Onboard Connectors & Header | AAFP Connector |
| Memory channel | Double |
| Audio Channels | 2.1 |
| SATA RAID | 0 |
| Quality Certification | ROHS |
| Number of PCIe x 1 | 1 |
| Form Factor | Micro-ATX |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 1 |
| Choice | yes |
